specification
| Description | Specification | Unit |
| Rated Power | 276 | Kw/h |
| Overall dimension(L x W X H) | 12821×3517×4578 | mm |
| Operating weight | 63000 | kg |
| Max. lifting height (Forks at level) | 3910 | mm |
| Rated load | 40000 | kg |
| Tipping load - Straight | 56000 | kg |
| Dimensions of fork | (L x W x H) | 2400×300×110 | mm |
Load center ditance | 1200 | mm |
| unload anger | 18 | ° |
| Wheel base | 4578 | mm |
| Tread | 2750 | mm |
| Turning angle | ±32 | ° |
| Max.tranction force | 98556 | N.m |
| Max.Climbing Gradient | 35 | % |
| Turning radius | 10300 | mm |
| Min.Ground clearance | 450 | mm |
| Haul location height(Ground clearance of material) | 300~1200 | mm |
| Fuel tank capacity | 420 | L |
| Hydraulic oil tank capacity | 420 | L |
| Rotary speed | 3(2∏) | rpm |
| The bearing capacity of tools | 40000 | kg |
| Specification of tyre | Front wheel | 29.5R29 | -- |
| Rear wheel | 29.5R29 |
Whole machine—Equipped with professional air-condition, single-handle pilot control system, electronic control gearshift device to ensure easy operation, Independent transmission oil and hydraulic oil radiator improve the system stability.
Engine—Top-grade Diesel 370hp engine with intercooler system, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment.
Axle—Bigger and enhanced drive axles special for forklift loaders.One Axle can load 110 tons. The bearing, gears, Hydraulic wet brake, safe and reliable performance. Four wheels automatic emergency braking when unpowered output or the system pressure is low, it is more secure and reliable in harsh working conditions.
High Pressure Oil Hose—oil-pipes for high-pressure position adopts high-value and durable PARKER hose. More reliable and durable.
Structure—Special design , thickening steel plate, the thickness of lift-arm and hinged panels reaches 85mm, Bigger hinged pin and hinged bearing to fully improve the carrying capacity. Lift-arm increases the lower beam structure which to improve torsional performance, the operating weight reaches 57000kg and the width reaches 3520mm to effectively improve the lateral stability of the whole machine. Double rocker arms solve problem which the stone and rocker arm collide, meanwhile also make the driver’s sight wider
Transmission and torque converter—Adopt CAT technology fixed shaft power shift transmission system, compact structure, long service life of gear. Make the whole machine more flexible, special for the harsh working environment at the quarries.
|
|

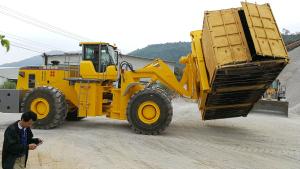

full load 40t Container Rotating Unloader using for Loose material quick loading and unloading cabinet handling Images
|
